Engine Mount LH — Removal — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4643

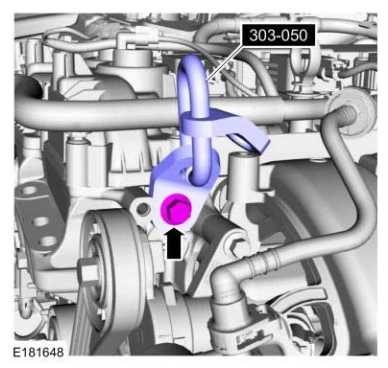

Engine Mount LH — original illustration 1, reference 4643Original colors & callouts · Select to enlarge

NOTE: Coolant tube removed for clarity.

4. Install the special tool on the RH side of the cylinder head. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

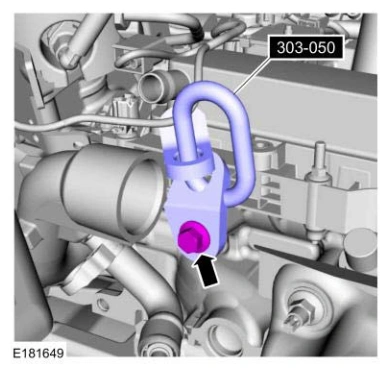

Engine Mount LH — original illustration 2, reference 4643Original colors & callouts · Select to enlarge

5. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .

6. Remove the retainers and the radiator top shield.

Engine Mount LH — original illustration 3, reference 4643Original colors & callouts · Select to enlarge
