Engine Mount LH — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4641

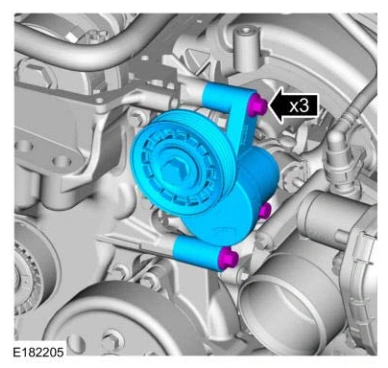

Engine Mount LH — original illustration 1, reference 4641Original colors & callouts · Select to enlarge

7. Install the crankshaft front seal. Refer to: Crankshaft Front Seal .

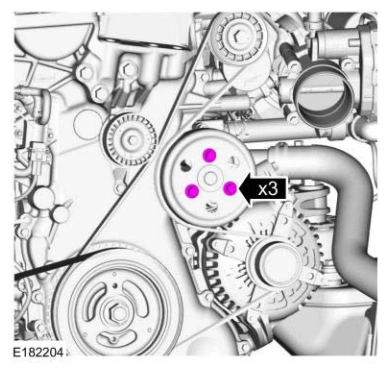

8. Tighten the coolant pump pulley bolts.

Torque

: 177 lb.in (20 Nm)

Engine Mount LH — original illustration 2, reference 4641Original colors & callouts · Select to enlarge

9. Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

REMOVAL AND INSTALLATION > ENGINE MOUNT LH

Special Tool(s) / General Equipment
