Engine Front Cover — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,640HTML edition
← Chapter contentsManual collection

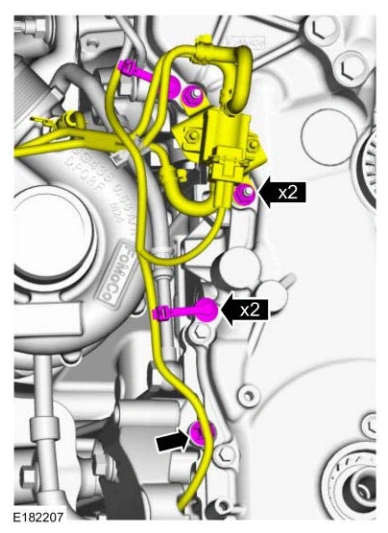

Attach the wiring harness retainer.

Engine Front Cover — original illustration 1, reference 4640Original colors & callouts · Select to enlarge

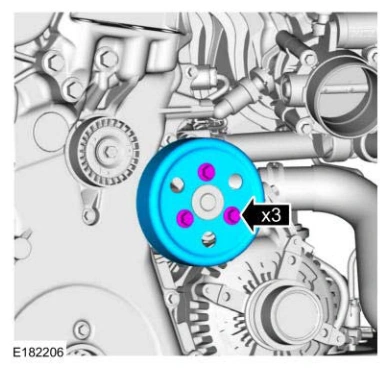

5. Finger-tight.Install the coolant pump pulley and the bolts finger-tight.

Engine Front Cover — original illustration 2, reference 4640Original colors & callouts · Select to enlarge

6. Install the accessory drive belt tensioner and the bolts.

Torque

: 18 lb.ft (25 Nm)
