Engine Front Cover — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,636HTML edition
← Chapter contentsManual collection

6. Remove the bolts and the coolant pump pulley.

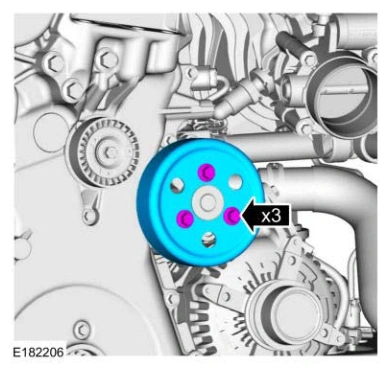

Engine Front Cover — original illustration 1, reference 4636Original colors & callouts · Select to enlarge

7. Detach the wiring harness retainer.

Remove the nuts and position aside the turbocharger vacuum valve.

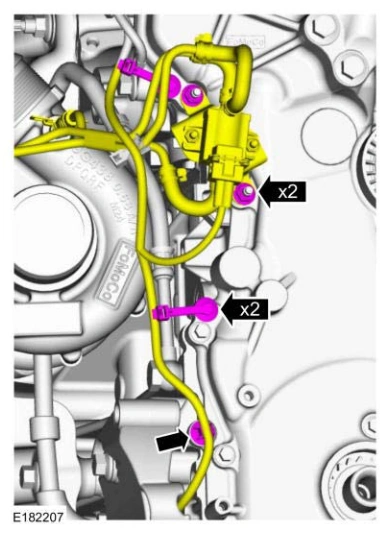

Engine Front Cover — original illustration 2, reference 4636Original colors & callouts · Select to enlarge

8. Remove the bolts and the engine front cover.
