Cylinder Head — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4625

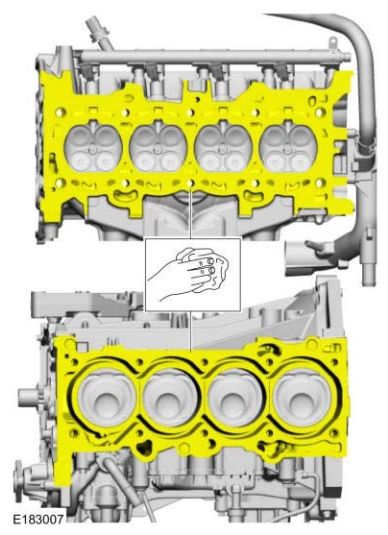

NOTE: Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.

23. Make sure that the mating faces are clean and free of foreign material.

Cylinder Head — original illustration 1, reference 4625Original colors & callouts · Select to enlarge

24. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .

25. Check the cylinder block distortion. Refer to: Cylinder Block Distortion .

REMOVAL AND INSTALLATION > CYLINDER HEAD > INSTALLATION

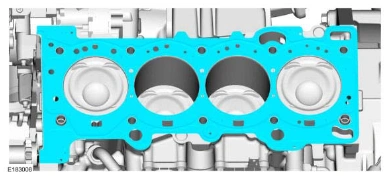

1. Install the cylinder head gasket.

Cylinder Head — original illustration 2, reference 4625Original colors & callouts · Select to enlarge
