Cylinder Head — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,621HTML edition
← Chapter contentsManual collection

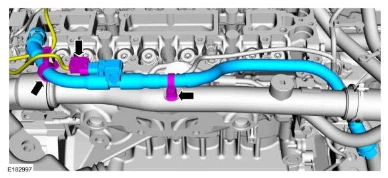

Cylinder Head — original illustration 1, reference 4621Original colors & callouts · Select to enlarge

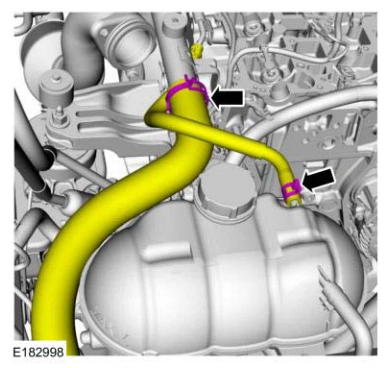

13. Disconnect the upper radiator hose from the coolant outlet tube.

Use the General Equipment: Hose Clamp Remover/Installer

Disconnect the coolant by-pass hose from the degas bottle.

Use the General Equipment: Hose Clamp Remover/Installer

Cylinder Head — original illustration 2, reference 4621Original colors & callouts · Select to enlarge

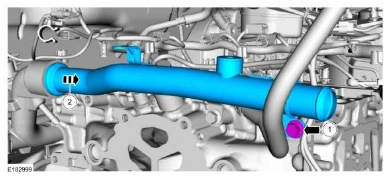

14. Remove the bolt from the cylinder head and remove the coolant tube from coolant outlet.

Cylinder Head — original illustration 3, reference 4621Original colors & callouts · Select to enlarge

15. Remove and discard the coolant tube O-ring seal.
