Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,727HTML edition
← Chapter contentsManual collection

28. Remove and discard the rear subframe bolts.

Oil Pump — original illustration 1, reference 4727Original colors & callouts · Select to enlarge

29. Remove and discard the front subframe nuts.

Oil Pump — original illustration 2, reference 4727Original colors & callouts · Select to enlarge

30. Using an adjustable stand, lower the subframe 101.6 mm (4 in.).

Use the General Equipment: Vehicle/Axle Stands

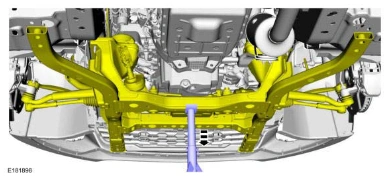

Oil Pump — original illustration 3, reference 4727Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

31. Remove the nut from the RH engine mount bracket stud bolt for the transmission cooling tubes.

Ford_Mustang_all_2015-2017.pdf · source reference 4727
