Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,729HTML edition

← Chapter contents Manual collection

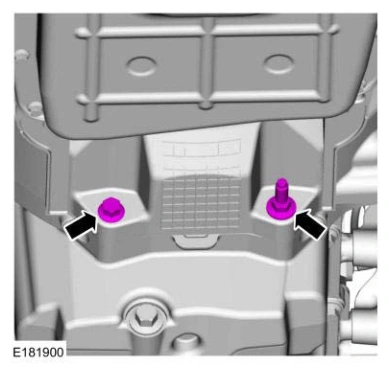

Oil Pump — original illustration 1, reference 4729Original colors & callouts · Select to enlarge

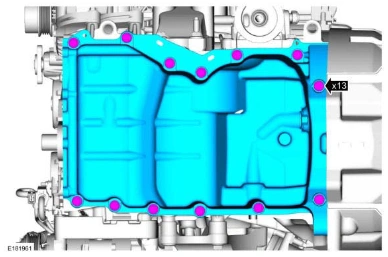

34. Remove the bolts and the oil pan.

Oil Pump — original illustration 2, reference 4729Original colors & callouts · Select to enlarge

35. Remove the bolts and the oil pump screen and pickup tube.
