Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,732HTML edition
← Chapter contentsManual collection

Remove the bolt and oil pump sprocket.

Oil Pump — original illustration 1, reference 4732Original colors & callouts · Select to enlarge

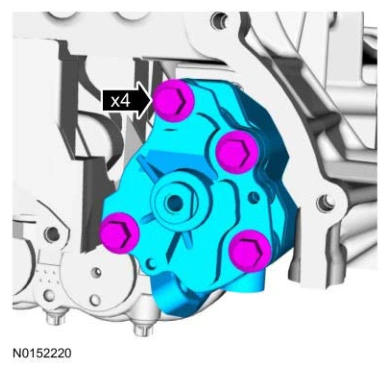

40. Remove the bolts and the oil pump.

Oil Pump — original illustration 2, reference 4732Original colors & callouts · Select to enlarge

41. Remove and discard the oil pump gasket.
