Oil Pump — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,735HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 4735Original colors & callouts · Select to enlarge

4.

1.

WARNING: Take extra care when handling the compressed spring.

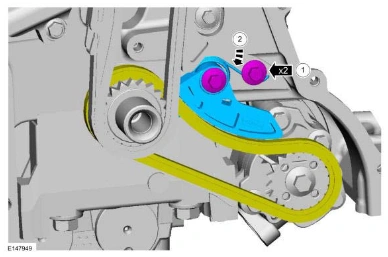

Install the oil pump drive chain, tensioner and the shoulder bolts.

Torque

: 89 lb.in (10 Nm)

2. Hook the tensioner spring around the shoulder bolt.

Oil Pump — original illustration 2, reference 4735Original colors & callouts · Select to enlarge

5. Install the new oil pump screen and pickup tube gasket.
