Oil Pump — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4738

10. Tighten the oil pan bolts.

Torque

: 18 lb.ft (25 Nm)

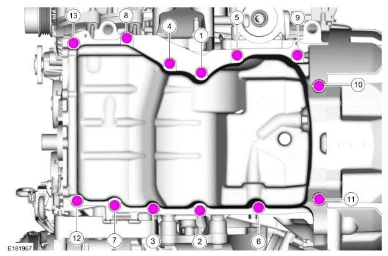

Oil Pump — original illustration 1, reference 4738Original colors & callouts · Select to enlarge

11. Using an adjustable stand, raise the subframe.

Use the General Equipment: Vehicle/Axle Stands

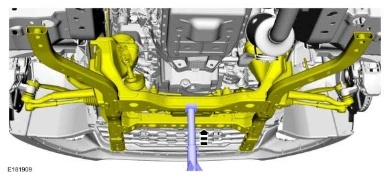

Oil Pump — original illustration 2, reference 4738Original colors & callouts · Select to enlarge

12. Install the new front subframe nuts loosely.

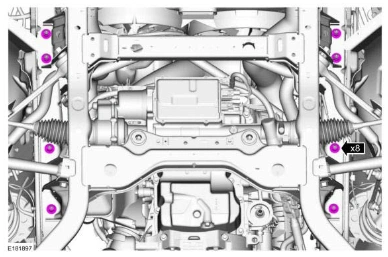

Oil Pump — original illustration 3, reference 4738Original colors & callouts · Select to enlarge

13. Use a suitable alignment tool with a 15 mm (0.59 in) OD shaft that is long enough to go through the subframe and body.
