Oil Pump — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,737HTML edition
← Chapter contentsManual collection

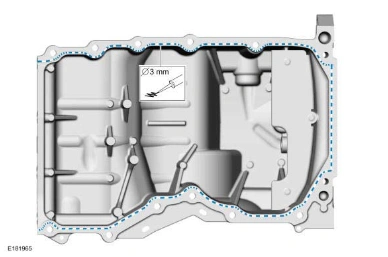

Oil Pump — original illustration 1, reference 4737Original colors & callouts · Select to enlarge

8. Install the oil pan and the bolts finger tight.

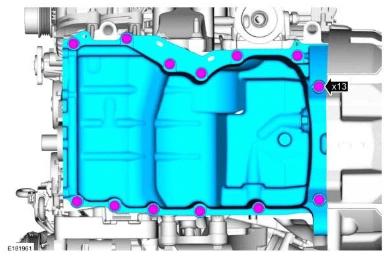

Oil Pump — original illustration 2, reference 4737Original colors & callouts · Select to enlarge

9. Align the front surface of the oil pan flush with the front surface of the engine block.

Use the General Equipment: Round-Ended Steel Rule

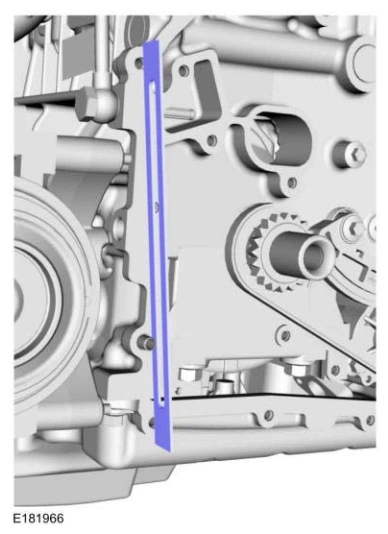

Oil Pump — original illustration 3, reference 4737Original colors & callouts · Select to enlarge
