Oil Pump — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4734

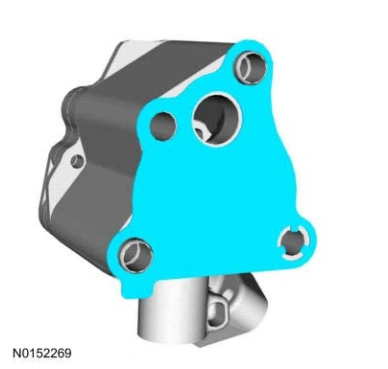

Oil Pump — original illustration 1, reference 4734Original colors & callouts · Select to enlarge

2. Install the oil pump and the bolts.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

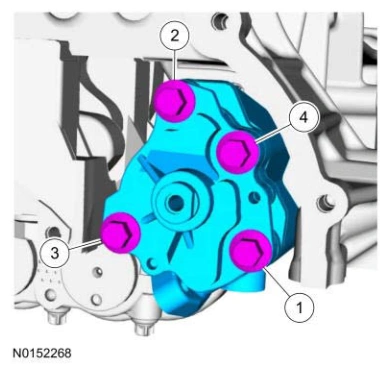

Oil Pump — original illustration 2, reference 4734Original colors & callouts · Select to enlarge

3. Install the oil pump sprocket and bolt.

Torque

: 18 lb.ft (25 Nm)
