Oil Pump — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,731HTML edition
← Chapter contentsManual collection

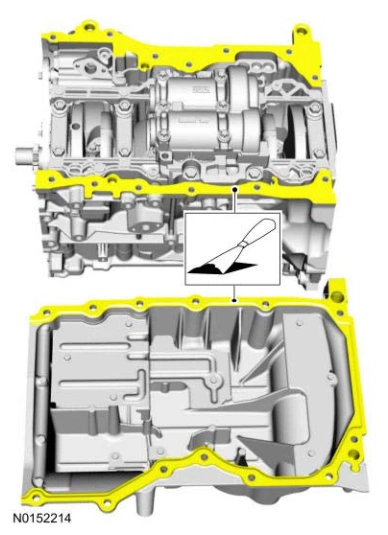

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Oil Pump — original illustration 1, reference 4731Original colors & callouts · Select to enlarge

38.

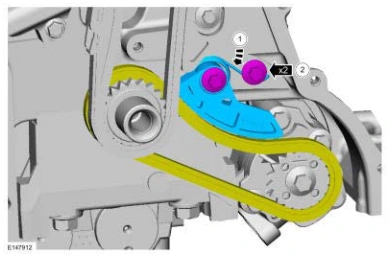

1.

WARNING: Take extra care when handling the compressed spring.

Release the tension on the tensioner spring.

2. Remove the shoulder bolts and the tensioner and position the chain aside.

Oil Pump — original illustration 2, reference 4731Original colors & callouts · Select to enlarge

39.
