Oil Pump — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4736

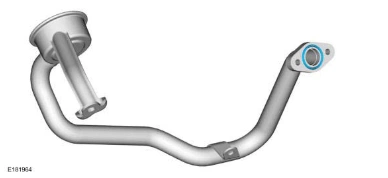

Oil Pump — original illustration 1, reference 4736Original colors & callouts · Select to enlarge

6. Install the oil pump screen and pickup tube and the bolts.

Torque

: 89 lb.in (10 Nm)

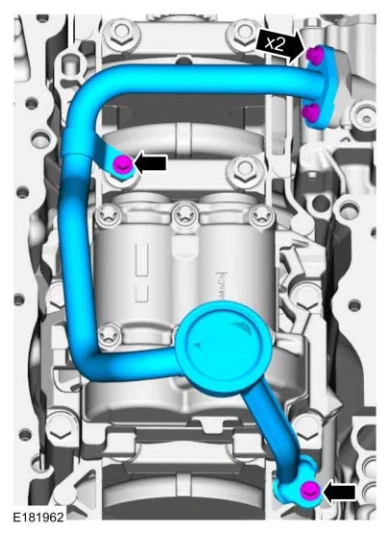

Oil Pump — original illustration 2, reference 4736Original colors & callouts · Select to enlarge

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

7. Apply a 3 mm (0.19 in) bead of silicone sealant.

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
