Oil Pump — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4739

Align the subframe to the alignment marks made during removal.

Install the new rear subframe bolts loosely.

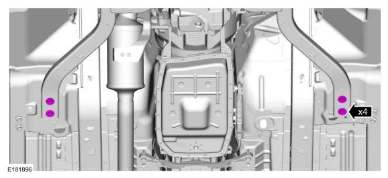

Oil Pump — original illustration 1, reference 4739Original colors & callouts · Select to enlarge

14. Tighten the rear subframe bolts in a cross pattern.

Torque

: 85 lb.ft (115 Nm)

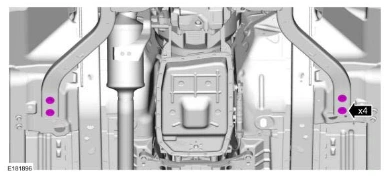

Oil Pump — original illustration 2, reference 4739Original colors & callouts · Select to enlarge

15. Tighten the front subframe nuts in a cross pattern.

Torque

: 85 lb.ft (115 Nm)

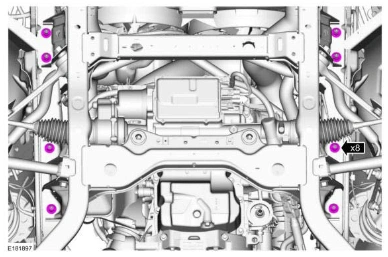

Oil Pump — original illustration 3, reference 4739Original colors & callouts · Select to enlarge

16. Remove the adjustable stand.

Use the General Equipment: Vehicle/Axle Stands
