Oil Pump — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,742HTML edition
← Chapter contentsManual collection

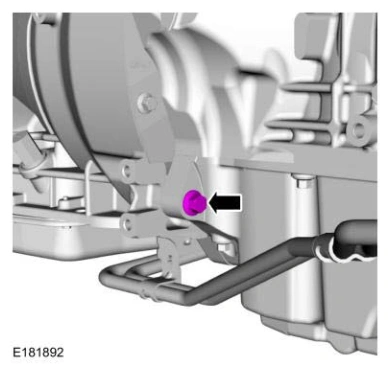

Oil Pump — original illustration 1, reference 4742Original colors & callouts · Select to enlarge

21. Install the bolts in the support bar.

Torque

: 89 lb.in (10 Nm)

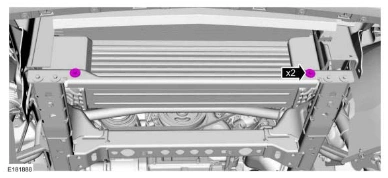

Oil Pump — original illustration 2, reference 4742Original colors & callouts · Select to enlarge

22. Attach the brake line retainers to the subframe.

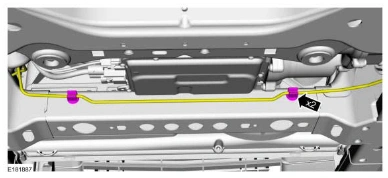

Oil Pump — original illustration 3, reference 4742Original colors & callouts · Select to enlarge

23. Attach the EPAS wiring harness pin-type retainers.

Ford_Mustang_all_2015-2017.pdf · source reference 4742
