Oil Pump — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,745HTML edition
← Chapter contentsManual collection

2. Install the underbody shield screws.

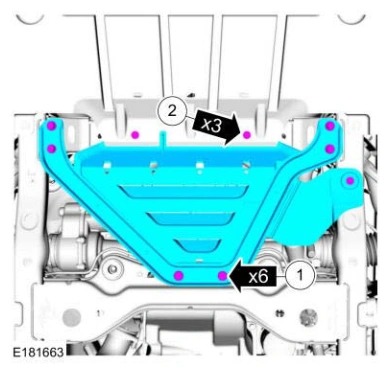

Oil Pump — original illustration 1, reference 4745Original colors & callouts · Select to enlarge

29. Install the front wheels and tires. Refer to: Wheel and Tire .

30. Remove Special Service Tool: 303-F072 Support Bar, Engine.

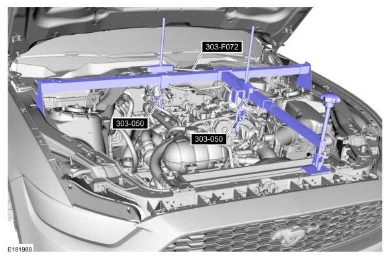

Oil Pump — original illustration 2, reference 4745Original colors & callouts · Select to enlarge

31. Connect the vacuum tube to the RH engine mount.
