Oil Pump — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,747HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 4747Original colors & callouts · Select to enlarge

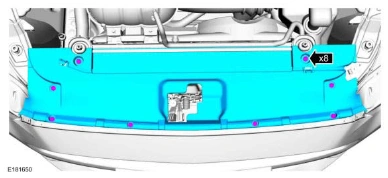

35. Install the radiator top shield and the retainers.

Oil Pump — original illustration 2, reference 4747Original colors & callouts · Select to enlarge

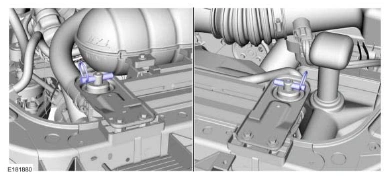

36. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Oil Pump — original illustration 3, reference 4747Original colors & callouts · Select to enlarge

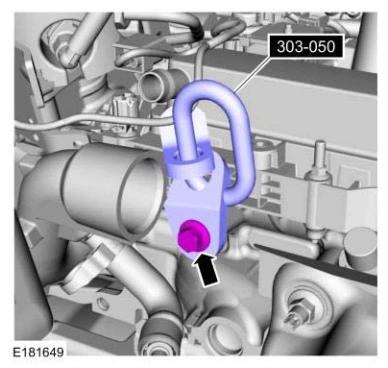

37. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

Ford_Mustang_all_2015-2017.pdf · source reference 4747

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
