Oil Pump — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4749

Oil Pump — original illustration 1, reference 4749Original colors & callouts · Select to enlarge

42.

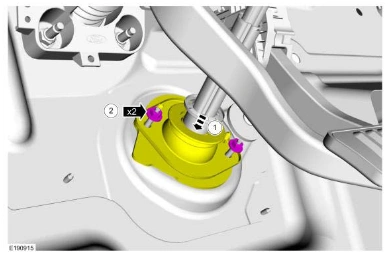

1. Position the steering column dash seal.

2. Tighten the steering column dash seal nuts.

Torque

: 80 lb.in (9 Nm)

Oil Pump — original illustration 2, reference 4749Original colors & callouts · Select to enlarge

43. Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
