Timing Chain — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,752HTML edition

← Chapter contents Manual collection

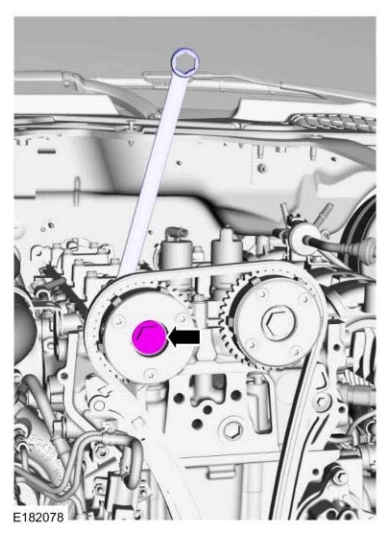

Timing Chain — original illustration 1, reference 4752Original colors & callouts · Select to enlarge

NOTE: Use an open-ended wrench to prevent the component from turning.

6. Using an open-ended wrench, loosen the intake VCT unit bolt.

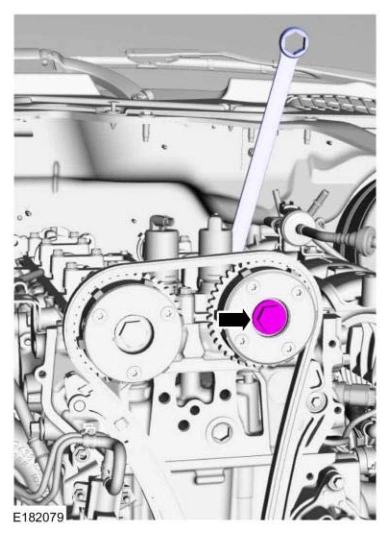

Timing Chain — original illustration 2, reference 4752Original colors & callouts · Select to enlarge
