Timing Chain — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,755HTML edition
← Chapter contentsManual collection

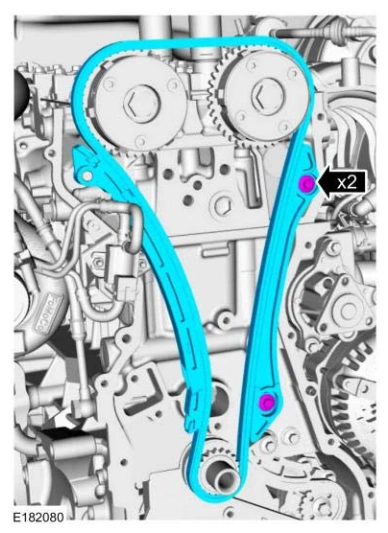

Timing Chain — original illustration 1, reference 4755Original colors & callouts · Select to enlarge

NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.

NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

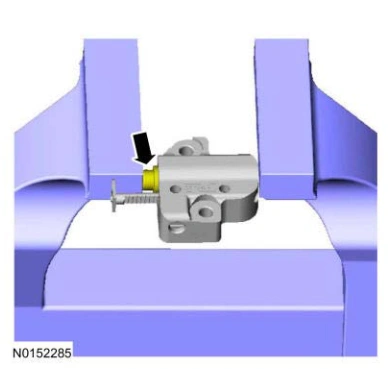

2. Using the edge of a vise, compress the timing chain tensioner plunger.

Timing Chain — original illustration 2, reference 4755Original colors & callouts · Select to enlarge

3. Using a small pick, push back and hold the ratchet mechanism.
