Timing Chain — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,756HTML edition
← Chapter contentsManual collection
Timing Chain — original illustration 1, reference 4756Original colors & callouts · Select to enlarge

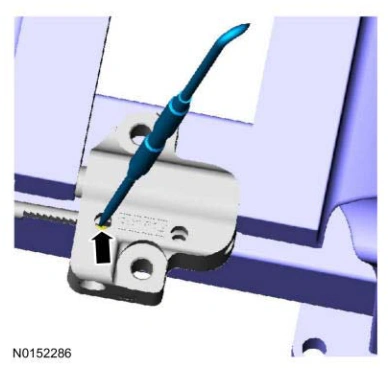

4. While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Timing Chain — original illustration 2, reference 4756Original colors & callouts · Select to enlarge

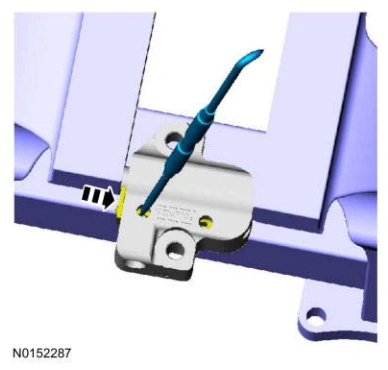

5. Install a holding pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

Ford_Mustang_all_2015-2017.pdf · source reference 4756
