Timing Chain — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,757HTML edition

← Chapter contents Manual collection

Timing Chain — original illustration 1, reference 4757Original colors & callouts · Select to enlarge

NOTE: Do not remove the holding pin until the tensioner bolts are tightened.

6. Install the timing chain tensioner and the bolts.

Torque

: 89 lb.in (10 Nm)

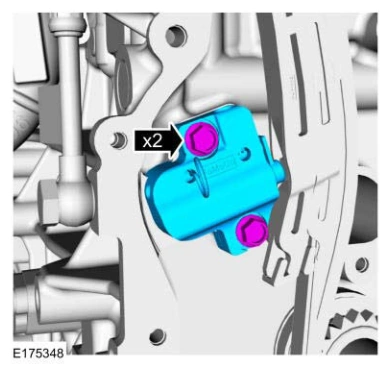

Timing Chain — original illustration 2, reference 4757Original colors & callouts · Select to enlarge

7. Remove the holding pin.
