Timing Chain — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,759HTML edition
← Chapter contentsManual collection

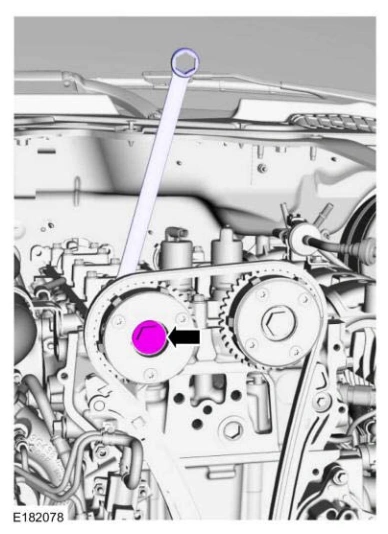

Using an open-ended wrench, tighten the exhaust VCT unit bolt.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60°

Timing Chain — original illustration 1, reference 4759Original colors & callouts · Select to enlarge

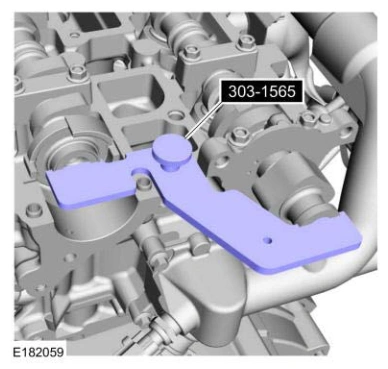

10. Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.

Timing Chain — original illustration 2, reference 4759Original colors & callouts · Select to enlarge

11. Install the engine front cover. Refer to: Engine Front Cover .

12.
