Valve Cover — Removal

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,761HTML edition
← Chapter contentsManual collection
Valve Cover — original illustration 1, reference 4761Original colors & callouts · Select to enlarge

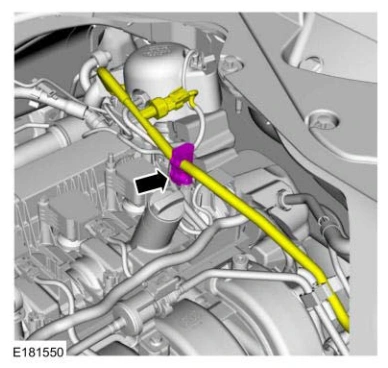

2. Detach the fuel supply tube retainer from the valve cover stud bolt.

Valve Cover — original illustration 2, reference 4761Original colors & callouts · Select to enlarge

3. Remove the ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG - 2.3L EcoBoost (231kW/314PS).

4. Remove the oil level indicator.
