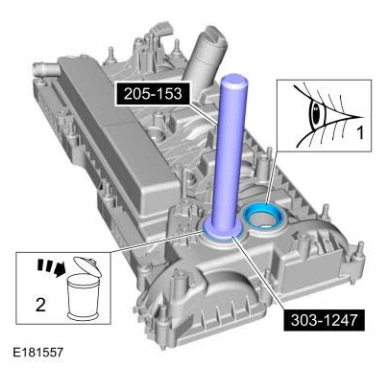

1. Inspect the VCT oil control solenoid seals for damaged.
2. If damaged, using the special tools, remove the VCT oil control solenoid seals and discard.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

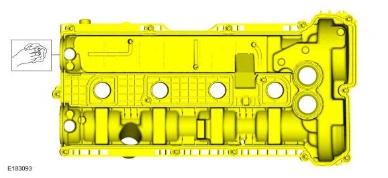

11. Make sure that the mating faces are clean and free of foreign material.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
12. Make sure that the mating faces are clean and free of foreign material.
