Valve Cover — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4766

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Valve Cover — original illustration 1, reference 4766Original colors & callouts · Select to enlarge

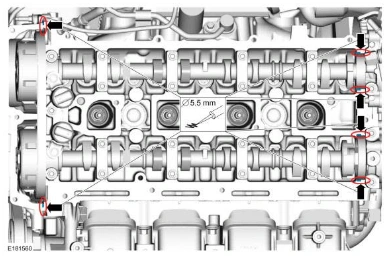

NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

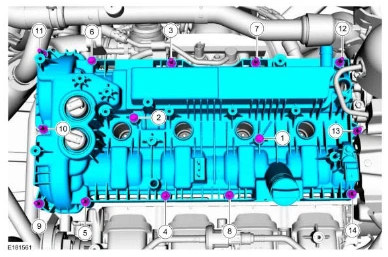

4. Install the valve cover and tighten the fasteners.

Torque

: 89 lb.in (10 Nm)

Valve Cover — original illustration 2, reference 4766Original colors & callouts · Select to enlarge

5. Install the exhaust CMP senor and the bolt.

Torque

: 62 lb.in (7 Nm)
