REMOVAL AND INSTALLATION > VARIABLE CAMSHAFT TIMING (VCT) UNIT >

REMOVAL

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

1. Remove the timing chain. Refer to: Timing Chain .

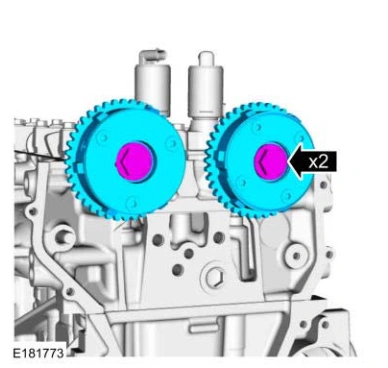

2. Remove the bolts and the VCT units.

Removal — original illustration 2, reference 4769Original colors & callouts · Select to enlarge

NOTE: Washers are not required for installation of the VCT units.
