Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4770

3. If equipped, discard the washers.

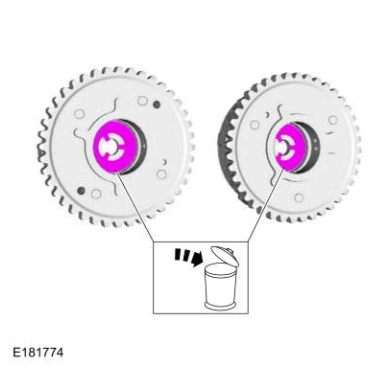

Engine — original illustration 1, reference 4770Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > VARIABLE CAMSHAFT TIMING (VCT) UNIT >

INSTALLATION

NOTE: Do not tighten the bolts at this time. The bolts will be tightened during the timing chain installation procedure.

1. Install the VCT units and the bolts.

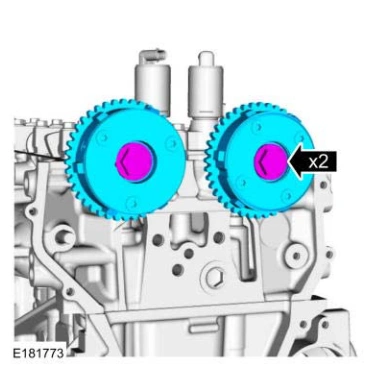

Engine — original illustration 2, reference 4770Original colors & callouts · Select to enlarge

2. Install the timing chain. Refer to: Timing Chain .
