Valve Cover — Installation — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4768

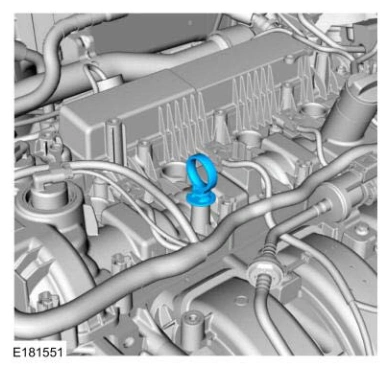

8. Install the oil level indicator.

Valve Cover — original illustration 1, reference 4768Original colors & callouts · Select to enlarge

9. Install the ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG - 2.3L EcoBoost (231kW/314PS).

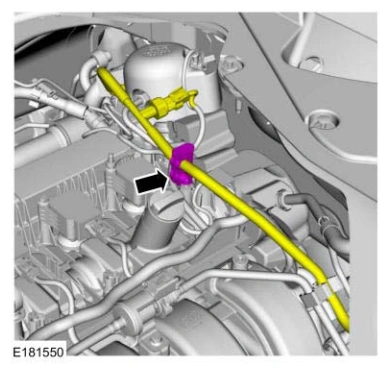

10. Attach the fuel supply tube retainer to the valve cover stud bolt.

Valve Cover — original illustration 2, reference 4768Original colors & callouts · Select to enlarge

11. Install the engine appearance cover and the nuts.

Torque

: 80 lb.in (9 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4768
