Valve Cover — Installation

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,767HTML edition
← Chapter contentsManual collection
Valve Cover — original illustration 1, reference 4767Original colors & callouts · Select to enlarge

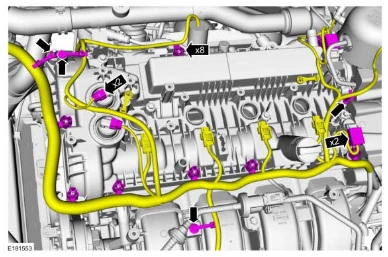

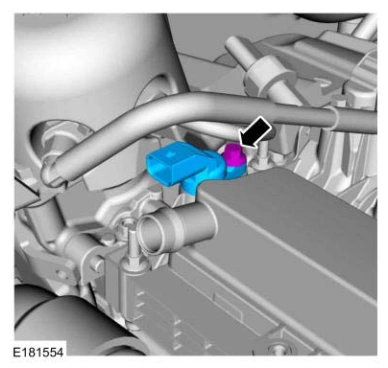

6. Attach the wiring harness retainers.

Connect the CMP sensor electrical connectors.

Connect the VCT oil control solenoid electrical connectors.

Valve Cover — original illustration 2, reference 4767Original colors & callouts · Select to enlarge

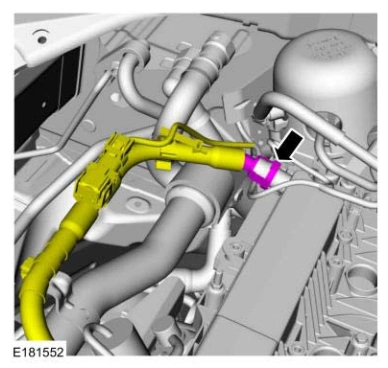

7. Connect the crankcase vent tube quick release connector to the valve cover.

Valve Cover — original illustration 3, reference 4767Original colors & callouts · Select to enlarge
