Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,771HTML edition
← Chapter contentsManual collection

Special Tool(s) / General Equipment

Engine — original illustration 1, reference 4771Original colors & callouts · Select to enlarge

300-OTC1819E 2, 200# Floor Crane, Fold Away

Engine — original illustration 2, reference 4771Original colors & callouts · Select to enlarge

303-050 (T70P-6000) Lifting Bracket, Engine

Magnetic Socket

Oil Drain Equipment

Trolley Jack

Hose Clamp Remover/Installer

Wooden Block

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Release the fuel system pressure. Refer to: FUEL SYSTEM PRESSURE RELEASE - 2.3L EcoBoost (231kW/314PS).

3. Remove the nuts and the engine appearance cover.

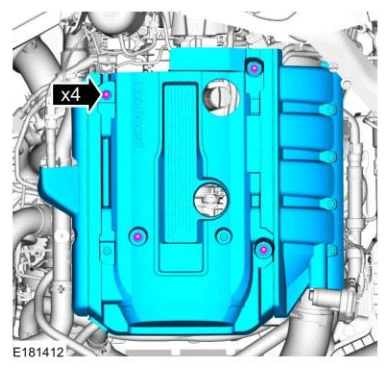

Engine — original illustration 3, reference 4771Original colors & callouts · Select to enlarge

4.
