Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,774HTML edition
← Chapter contentsManual collection

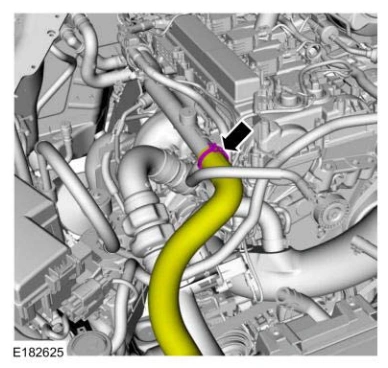

Engine — original illustration 1, reference 4774Original colors & callouts · Select to enlarge

13. Remove the following items:

Refer to: AIR CLEANER OUTLET PIPE - 2.3L EcoBoost (231kW/314PS).

Refer to: AIR CLEANER - 2.3L EcoBoost (231kW/314PS).

Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

14. Disconnect the CAC valve electrical connector and the retainers.

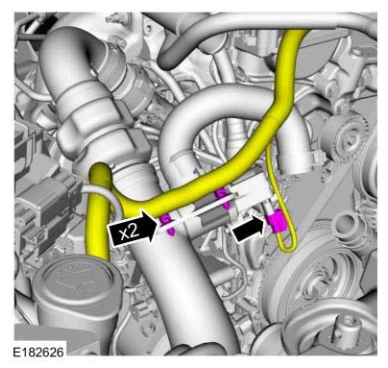

Engine — original illustration 2, reference 4774Original colors & callouts · Select to enlarge

15. Detach and disconnect the engine harness electrical connector.
