Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,776HTML edition
← Chapter contentsManual collection

18. Loosen the clamp and position aside the CAC outlet tube.

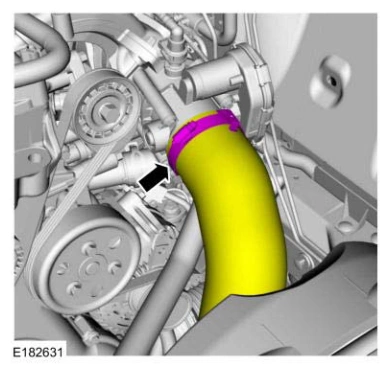

Engine — original illustration 1, reference 4776Original colors & callouts · Select to enlarge

19. Remove the lower radiator hose from the radiator.

Use the General Equipment: Hose Clamp Remover/Installer

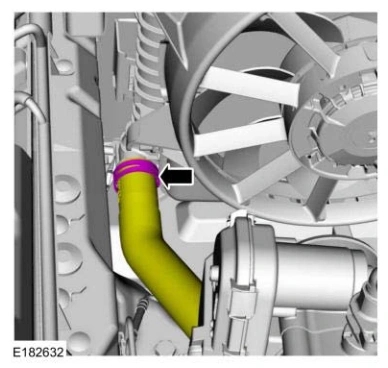

Engine — original illustration 2, reference 4776Original colors & callouts · Select to enlarge

20. Remove the retainer and the brake vacuum pump insulator cover.

Ford_Mustang_all_2015-2017.pdf · source reference 4776
