Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,779HTML edition
← Chapter contentsManual collection

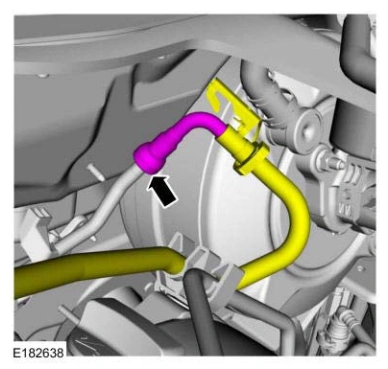

Engine — original illustration 1, reference 4779Original colors & callouts · Select to enlarge

26. Disconnect the vacuum tube quick release coupling from the EVAP canister purge valve.

Detach the vacuum tube from the intake manifold retainer.

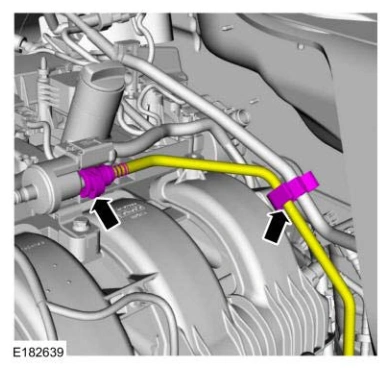

Engine — original illustration 2, reference 4779Original colors & callouts · Select to enlarge

27. Disconnect the vacuum tube quick release coupling at the rear of the intake manifold.

Ford_Mustang_all_2015-2017.pdf · source reference 4779
