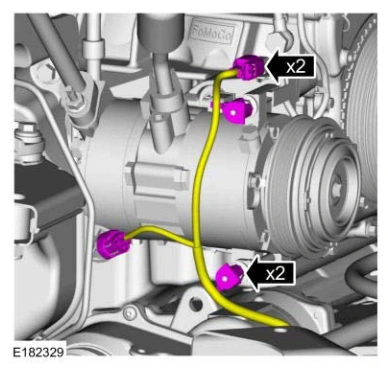

30. Disconnect the A/C compressor electrical connectors and the wire harness retainers.

Engine — original illustration 1, reference 4781Original colors & callouts · Select to enlarge

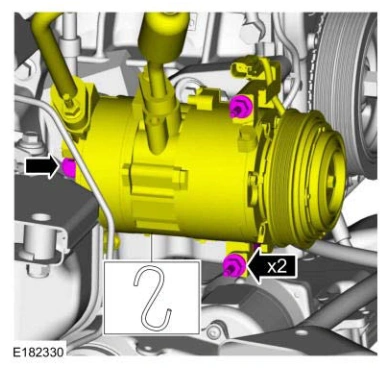

31. Remove the bolts, position and support the A/C compressor aside.

Engine — original illustration 2, reference 4781Original colors & callouts · Select to enlarge

32. Remove the starter motor. Refer to: STARTER MOTOR .

33. Remove the starter motor insulator.
