Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,782HTML edition
← Chapter contentsManual collection

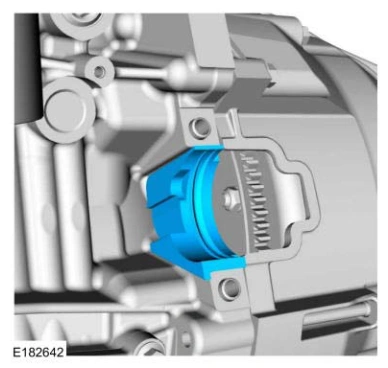

Engine — original illustration 1, reference 4782Original colors & callouts · Select to enlarge

34. Detach the wire harness retainer from the LH engine mount bracket stud bolt.

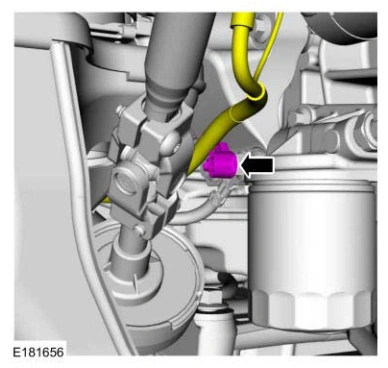

Engine — original illustration 2, reference 4782Original colors & callouts · Select to enlarge

35. Remove the nut and ground wire from the LH engine mount bracket stud bolt.

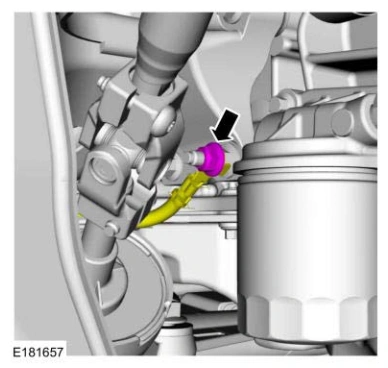

Engine — original illustration 3, reference 4782Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4782

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
