Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4783

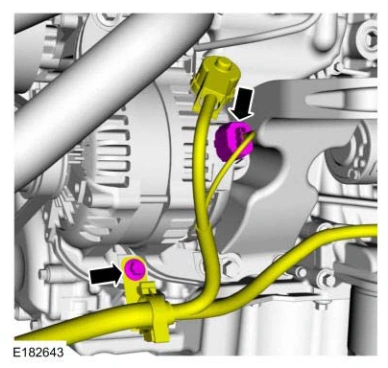

36. Remove the bolt and the wire harness retainer from the generator.

Disconnect the generator electrical connector.

Engine — original illustration 1, reference 4783Original colors & callouts · Select to enlarge

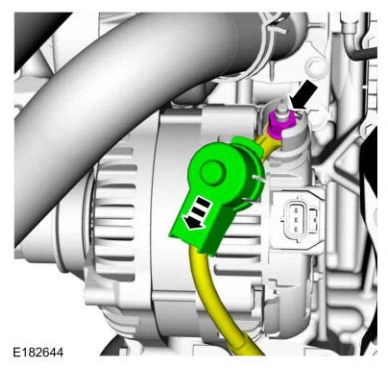

37. Position the protective cover aside.

Remove the nut and the B+ cable.

Engine — original illustration 2, reference 4783Original colors & callouts · Select to enlarge

38. Drain the engine oil and install drain plug.

Use the General Equipment: Oil Drain Equipment

Torque

: 20 lb.ft (27 Nm)
