Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4786

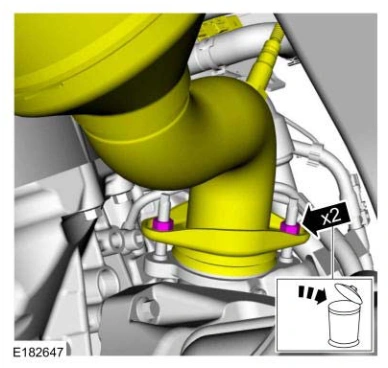

Engine — original illustration 1, reference 4786Original colors & callouts · Select to enlarge

43. Remove and discard the gasket.

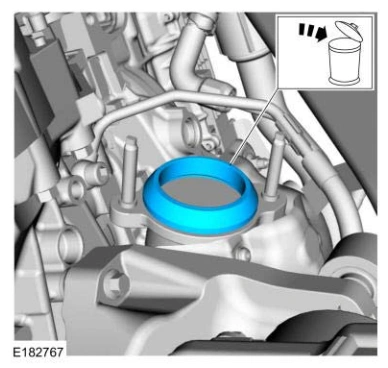

Engine — original illustration 2, reference 4786Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

44. Remove the transmission bolts.

Ford_Mustang_all_2015-2017.pdf · source reference 4786
