Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,788HTML edition
← Chapter contentsManual collection

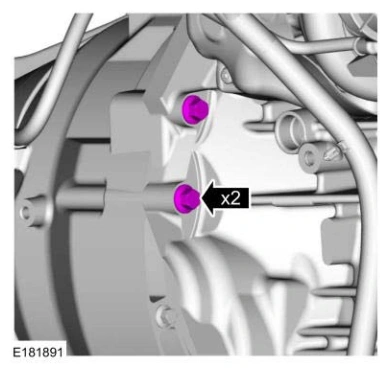

Engine — original illustration 1, reference 4788Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

47.

1. Rotate the transmission electrical connector.

2. Pull the transmission electrical connector out to disconnect.

Detach the retainers and position the wiring harness aside.

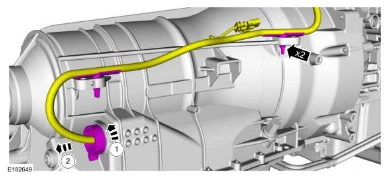

Engine — original illustration 2, reference 4788Original colors & callouts · Select to enlarge

NOTE: Index mark one stud and the flexplate for assembly reference.

NOTE: Only rotate the crankshaft in a clockwise direction.

48. Remove and discard the torque convertor nuts.

Use the General Equipment: Magnetic Socket

Ford_Mustang_all_2015-2017.pdf · source reference 4788
