Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,790HTML edition
← Chapter contentsManual collection

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

NOTE: Automatic transmission shown in illustration, manual transmission similar.

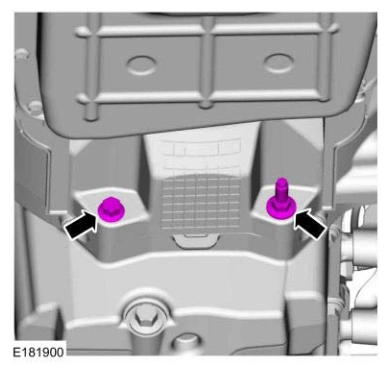

51. Remove the oil pan bolts.

Engine — original illustration 1, reference 4790Original colors & callouts · Select to enlarge

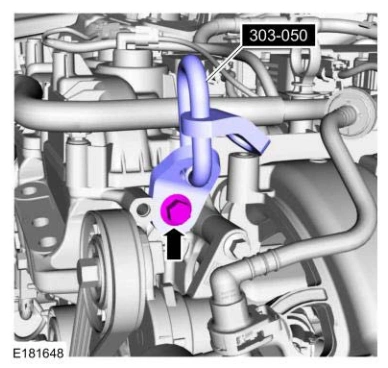

52. Install the special tool on the LH side of the cylinder head.

Install Special Service Tool: 303-050 (T70P-6000)Lifting Bracket, Engine.

Engine — original illustration 2, reference 4790Original colors & callouts · Select to enlarge

NOTE: Coolant tube removed for clarity.

53. Install the special tool on the RH side of the cylinder head.

Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
