Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,789HTML edition
← Chapter contentsManual collection

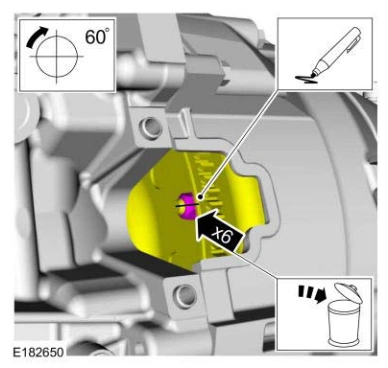

Engine — original illustration 1, reference 4789Original colors & callouts · Select to enlarge

49. Remove the nut from the RH engine mount bracket stud bolt for the transmission cooling tubes.

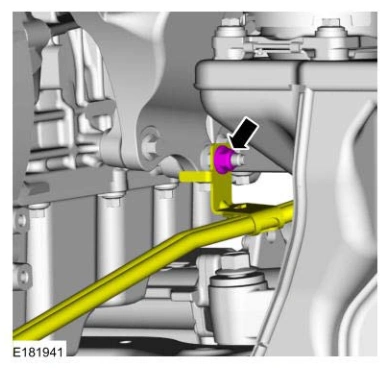

Engine — original illustration 2, reference 4789Original colors & callouts · Select to enlarge

50. Remove the transmission cooling tube bracket nut and position aside.

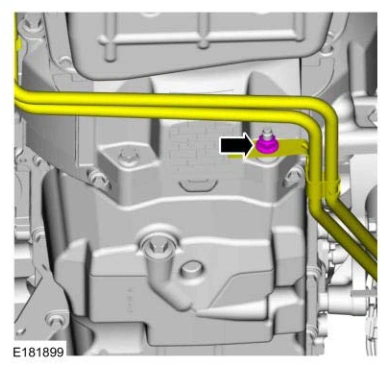

Engine — original illustration 3, reference 4789Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4789

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
