Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,792HTML edition
← Chapter contentsManual collection

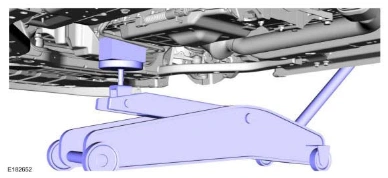

Engine — original illustration 1, reference 4792Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

57. Remove the oil pan bolt.

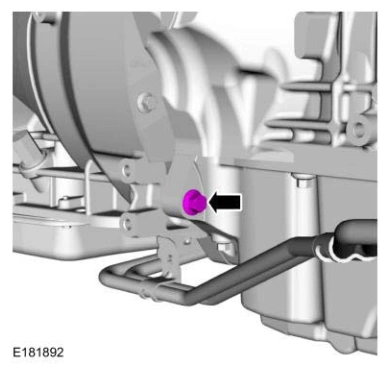

Engine — original illustration 2, reference 4792Original colors & callouts · Select to enlarge

58. Using the special tool, remove the engine.

Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

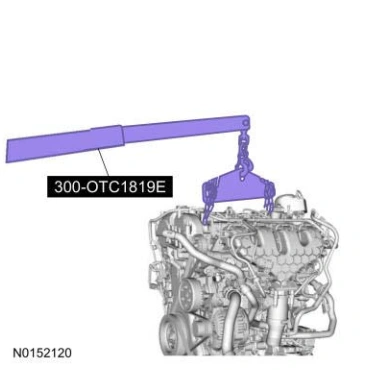

Engine — original illustration 3, reference 4792Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4792
