Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4791

Engine — original illustration 1, reference 4791Original colors & callouts · Select to enlarge

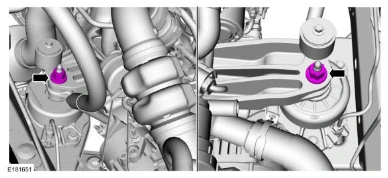

54. Remove the RH and LH engine mount bracket nuts.

Engine — original illustration 2, reference 4791Original colors & callouts · Select to enlarge

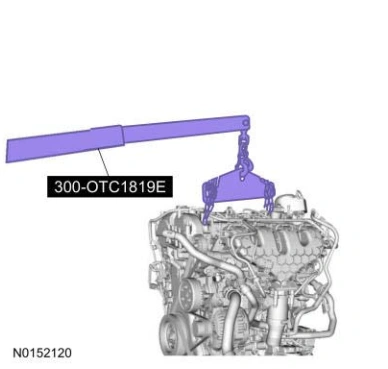

55. Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

Engine — original illustration 3, reference 4791Original colors & callouts · Select to enlarge

56. Install a jack and wooden block under the transmission bell housing to support the transmission.

Use the General Equipment: Wooden Block

Use the General Equipment: Trolley Jack
