Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,785HTML edition
← Chapter contentsManual collection

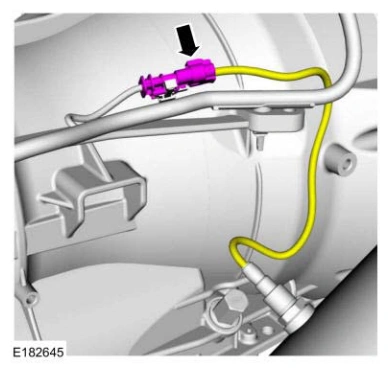

Engine — original illustration 1, reference 4785Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

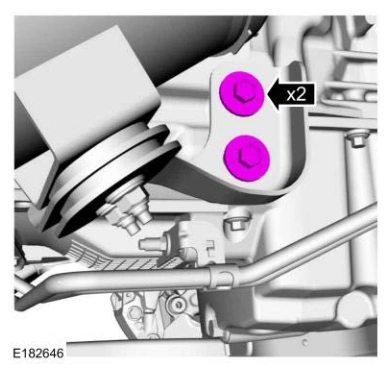

41. Remove the bolts for the catalytic converter bracket.

Engine — original illustration 2, reference 4785Original colors & callouts · Select to enlarge

42. Remove the nuts and position the catalytic converter aside.

Discard the nuts.
