Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,778HTML edition
← Chapter contentsManual collection

NOTE: It is necessary to move fuel tube retainer for access for the use of fuel disconnect tool.

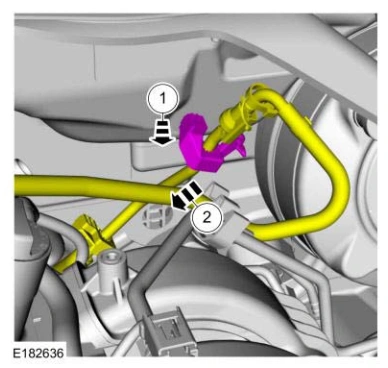

23.

1. Detach the fuel supply tube retainer from the cowl.

2. Slide the retainer down the fuel supply tube.

Engine — original illustration 1, reference 4778Original colors & callouts · Select to enlarge

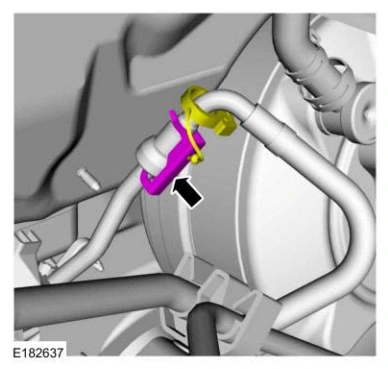

24. Remove the fuel supply tube spring lock coupling retainer.

Engine — original illustration 2, reference 4778Original colors & callouts · Select to enlarge

25. Disconnect the fuel supply tube. Refer to: SPRING LOCK COUPLINGS - 2.3L EcoBoost (231kW/314PS).
