Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,777HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4777Original colors & callouts · Select to enlarge

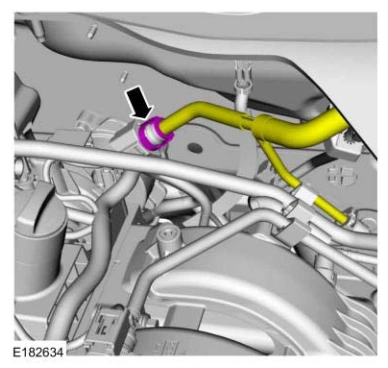

21. Disconnect the vacuum hose from the brake vacuum pump.

Engine — original illustration 2, reference 4777Original colors & callouts · Select to enlarge

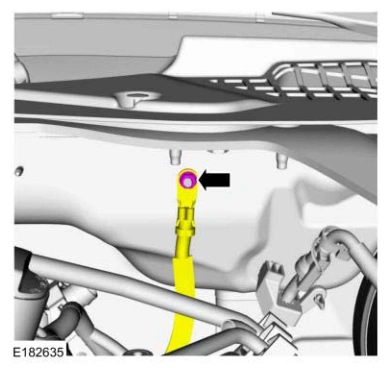

22. Remove the nut and the engine ground strap from the cowl.

Engine — original illustration 3, reference 4777Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 4777
