Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4773

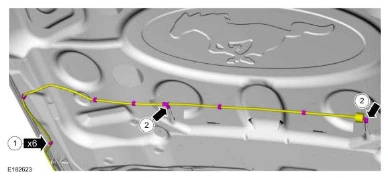

Engine — original illustration 1, reference 4773Original colors & callouts · Select to enlarge

NOTE: RH side shown in illustration, LH similar.

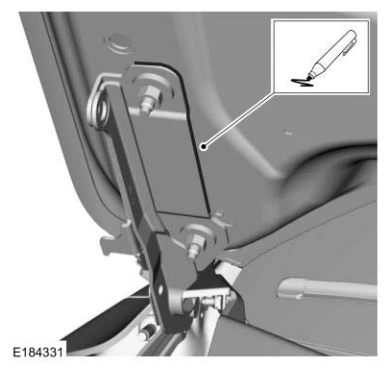

9. Index-mark the hood hinge location to aid in hood installation.

Engine — original illustration 2, reference 4773Original colors & callouts · Select to enlarge

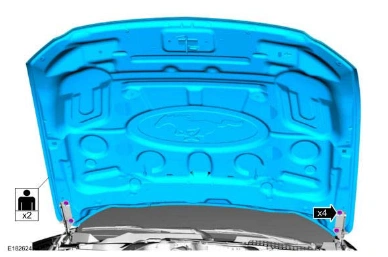

10. Remove the nuts and the hood.

Engine — original illustration 3, reference 4773Original colors & callouts · Select to enlarge

11. Remove the degas bottle. Refer to: DEGAS BOTTLE .

12. Remove the upper radiator hose from the coolant tube.

Use the General Equipment: Hose Clamp Remover/Installer
