Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,772HTML edition
← Chapter contentsManual collection

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

5. Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

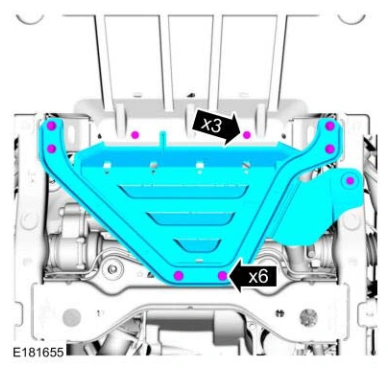

6. Remove the screws, bolts and the underbody shield.

Engine — original illustration 1, reference 4772Original colors & callouts · Select to enlarge

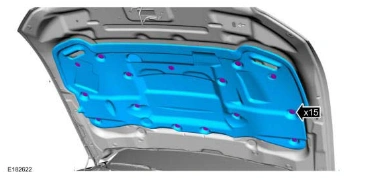

7. Remove the pin-type retainers and the hood insulation.

Engine — original illustration 2, reference 4772Original colors & callouts · Select to enlarge

8.

1. Detach the windshield washer hose retainers.

2. Disconnect the windshield washer hose couplings. Refer to: Washer Hose Coupling .
